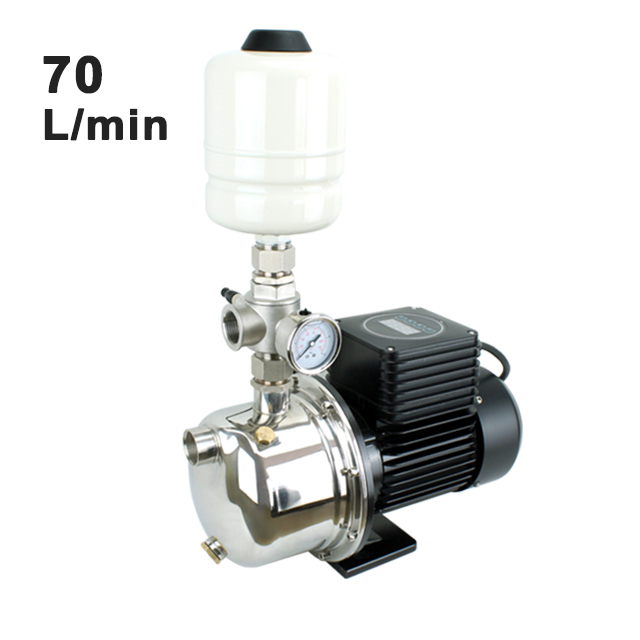

JSPF1200

Applications

The WENDY JSPF is a variable speed booster pump which can be used for domestic, light industry and commercial water supply and pressurization. The integrated variable speed controller enables JSPF pump to provide users with constant water.


Features:

- Constant water pressure
- Easy installation & dismantle
- Adjustable pressure
- User friendly
- Dry run protection
- Overheat protection

Constructions:

- Pump body: AISI304
- Diffuser: Sabic PPO
- Impeller: Sabic PPO
- IP55 motor
Availability:
sharethis sharing button

PERFORMANCE CHART AT n= 3400 min-1                     220-240VJSPF1200 曲线图 60Hz

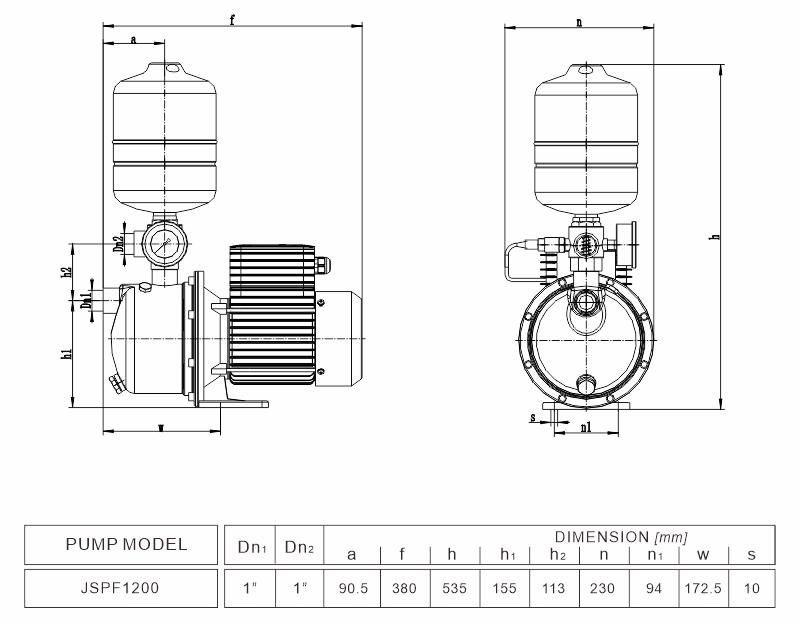

Dimension

JSPF1200 安装尺寸图 60Hz

     * Dimensional details are provided for reference only
