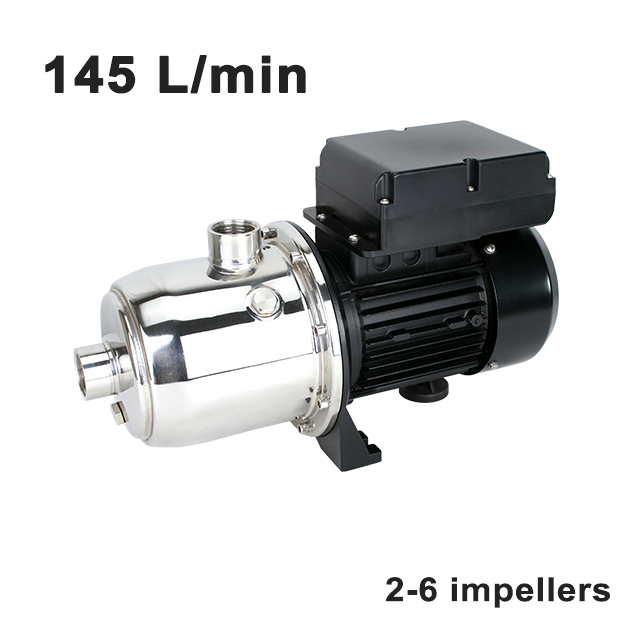

LH 145 series

Applications

The WENDY LH pump is a horizontal multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.

Features

- Sufficient water flow & high lift
- Low noise
- Low temperature rise motor
- Inbuilt thermal protector (single phase)
- Withstand 24-hour non-stop running
- Can be use for direct drink water
- IPX5

Constructions

- Impeller: AISI304
- Diffuser: AISI304
- Pump Shaft: AISI316
- Pump housing: AISI304
- Bearing: NSK
- Mechanical seal: Graphite, Silicon carbide, NBR, AISI304
- Terminal box: flame retardant ABS
