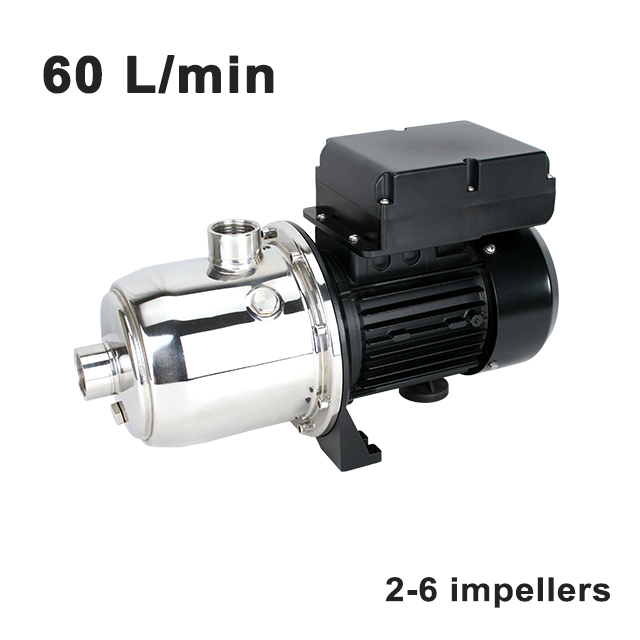

LH 60 series

Applications

The WENDY LH pump is a stainless steel multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.



Features

- Sufficient water flow
- Low noise
- Available high efficiency:
  Single phase motor class IE2
  Three phase motor class IE3

Constructions

- NSK bearing
- Reliable mechanical seal
- 316 stainless steel motor shaft
- Diffuser Sabic PPO and Stainless steel for optional
- Impeller Sabic PPO and Stainless steel for optional
- Low temperature rise motor
- IP55 protection for motor
- Flame retardant terminal box
- Inbuilt thermal protector (single phase)
Availability:
sharethis sharing button

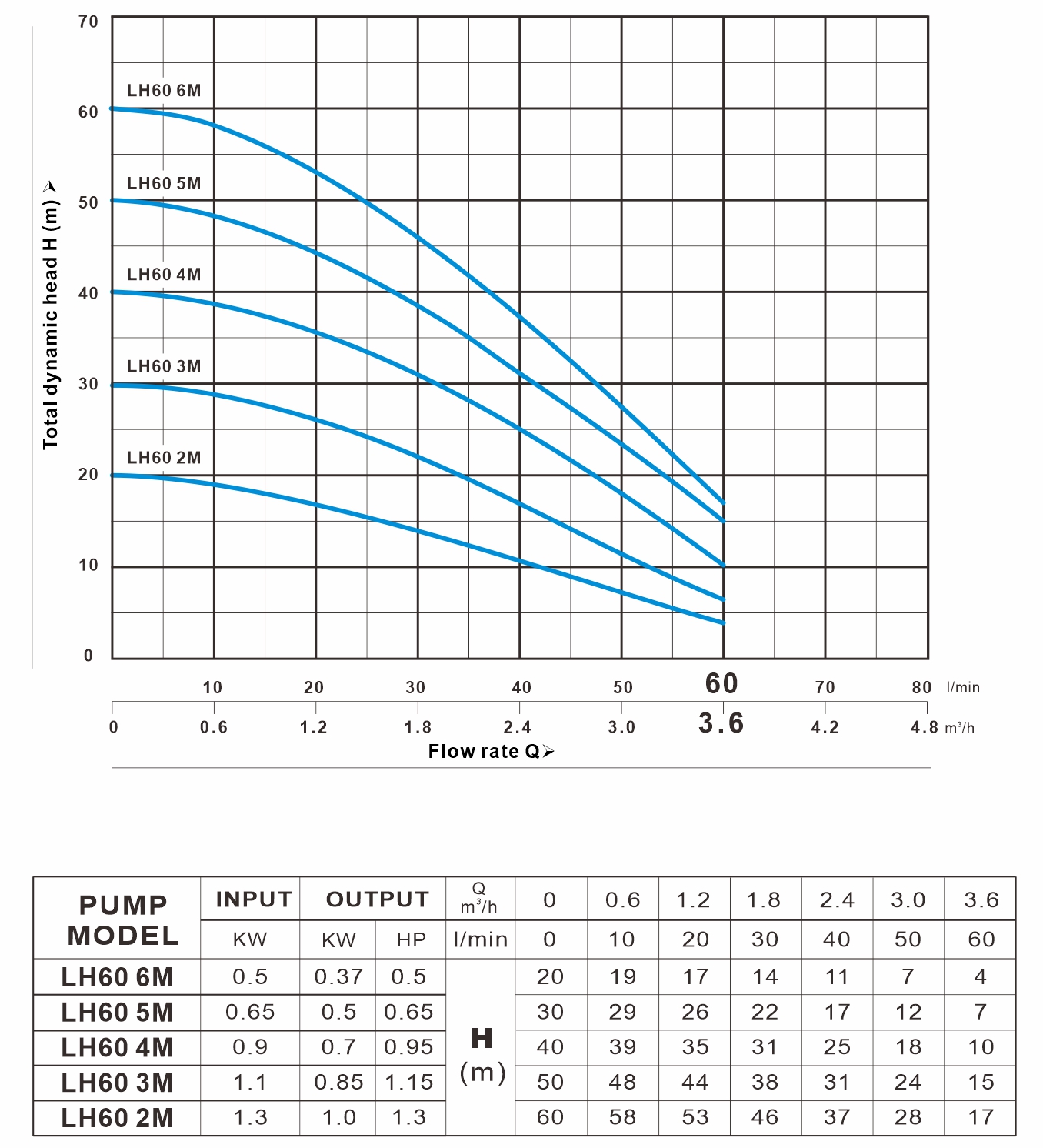

PERFORMANCE CHART AT n= 2850 min-1

LH 60系列 曲线图(50Hz)

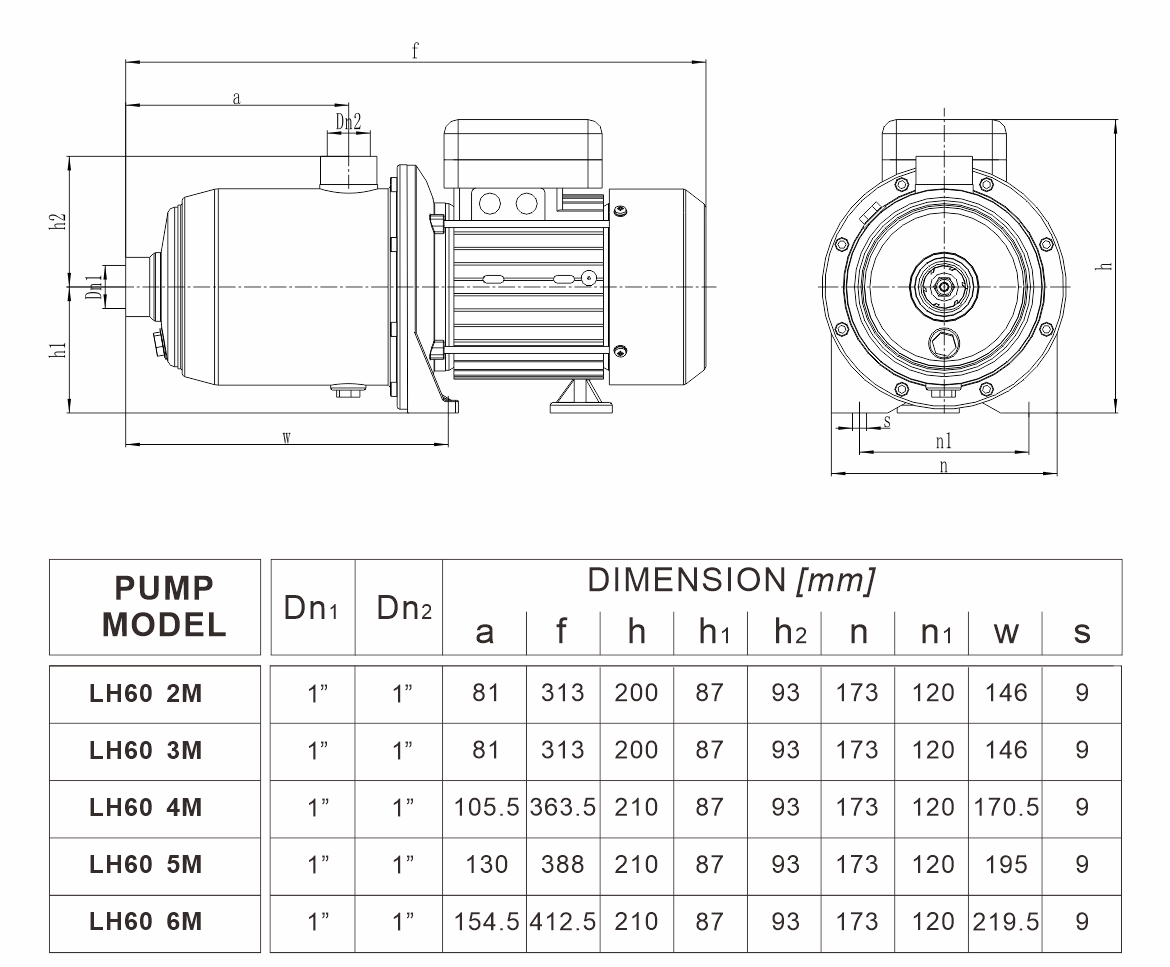

Dimension

LH 60系列 外形尺寸图(50Hz)

    * Dimensional details are provided for reference only
