MHB 60 Series

Applications

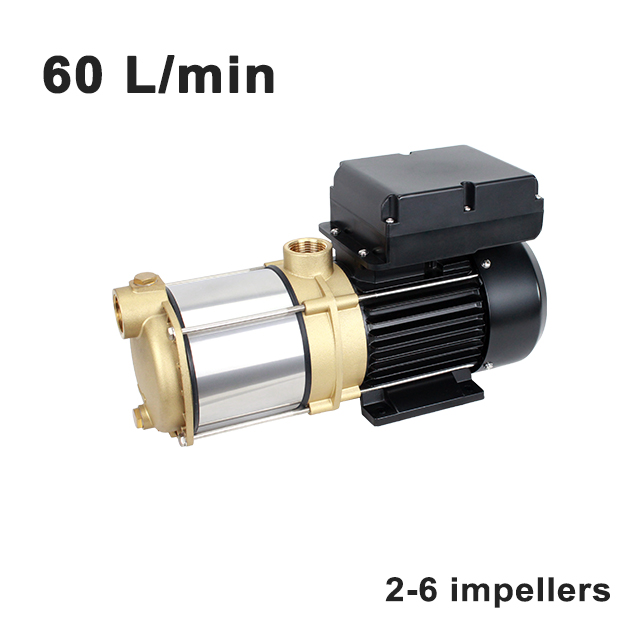

The WENDY MHB pump is a horizontal multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.

Features

  - Sufficient water flow
  - 8m Self-priming
  - Low noise

Constructions

  - NSK bearing
  - Reliable mechanical seal
  - 316 stainless steel motor shaft
  - Brass suction & discharge mounting
  - Diffuser Sabic PPO
  - Impeller Sabic PPO and Stainless steel for optional
  - Low temperature rise motor
  - IP55 protection for motor
  - Flame retardant terminal box
  - Inbuilt thermal protector (single phase)
Availability:

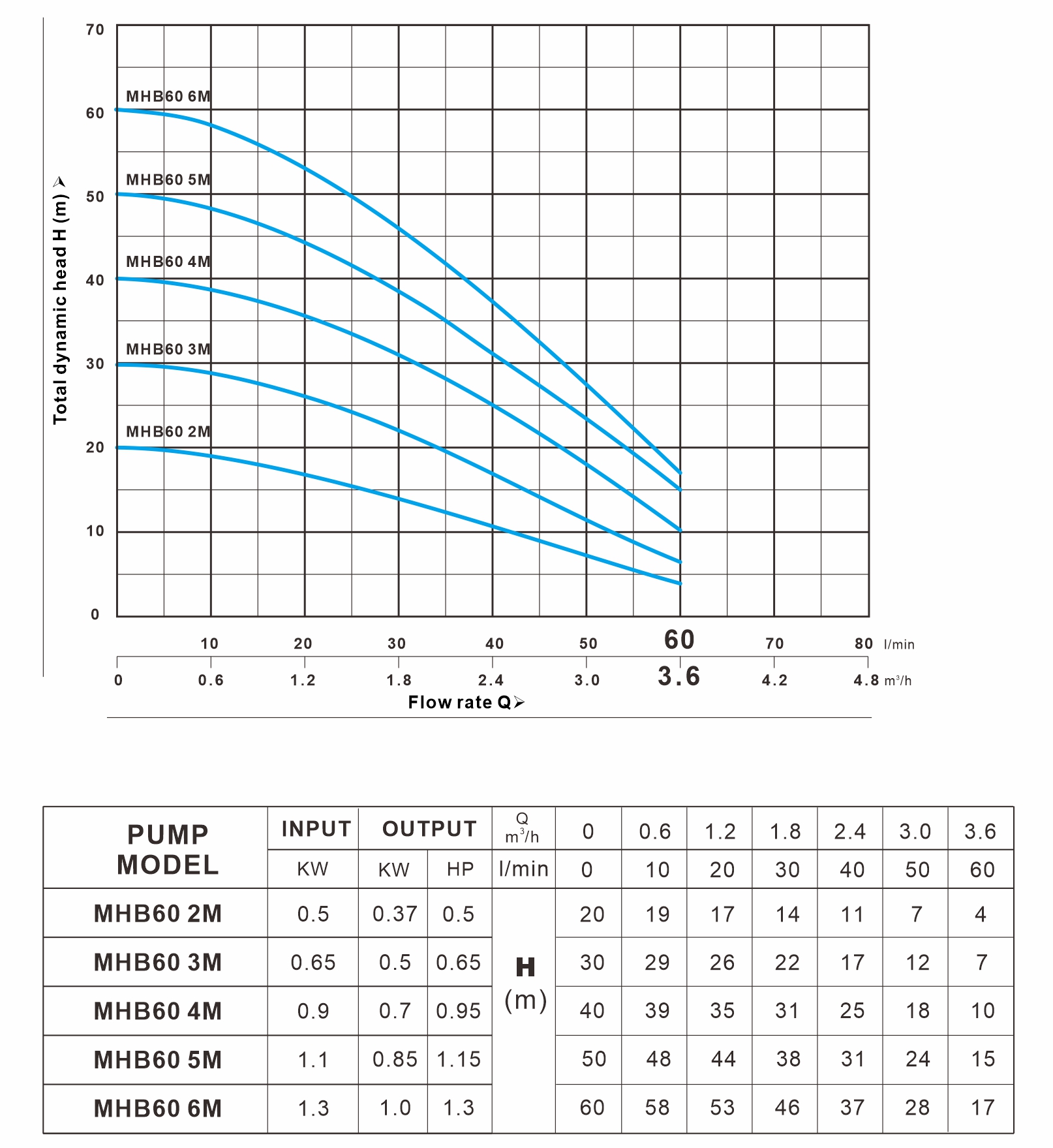

PERFORMANCE CHART AT n= 2850 min-1

MHB 60系列 曲线图(50Hz)

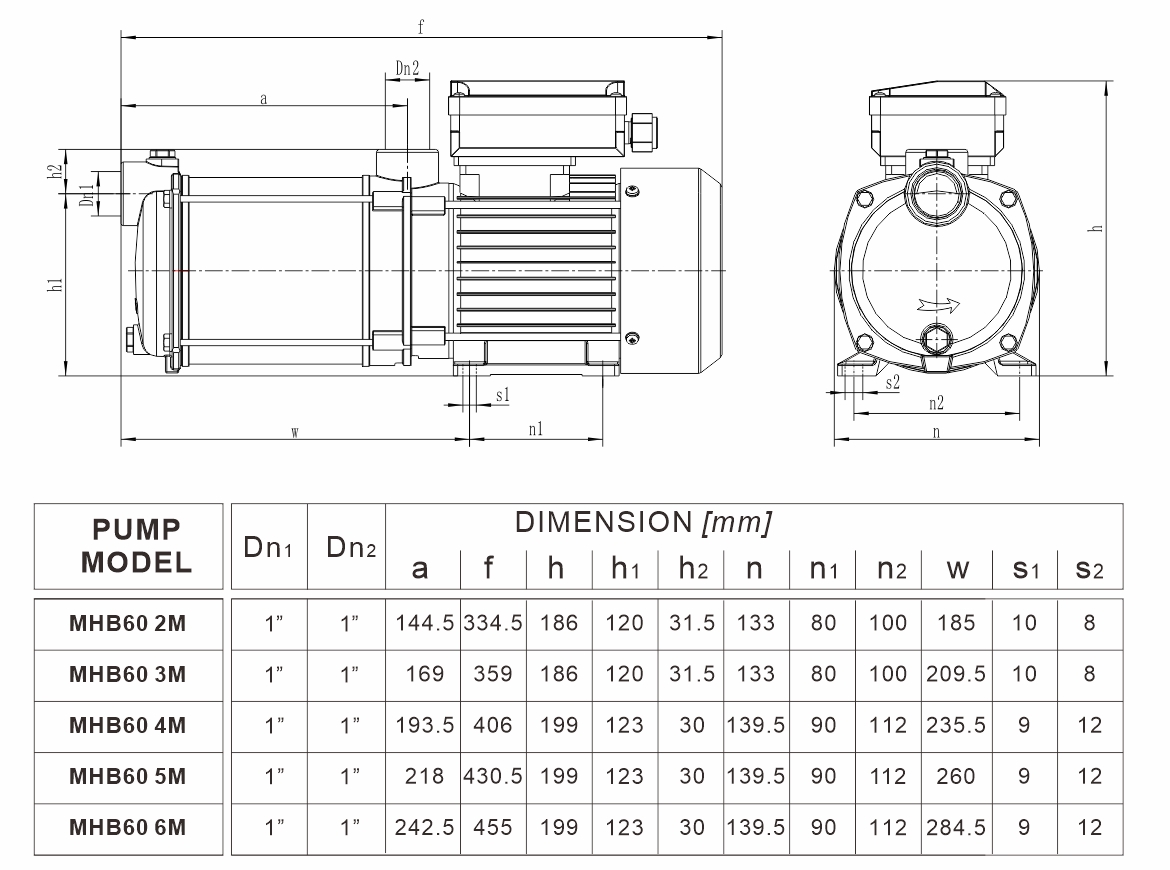

Dimension

MHB 60系列 安装曲线图(50Hz)

    * Dimensional details are provided for reference only

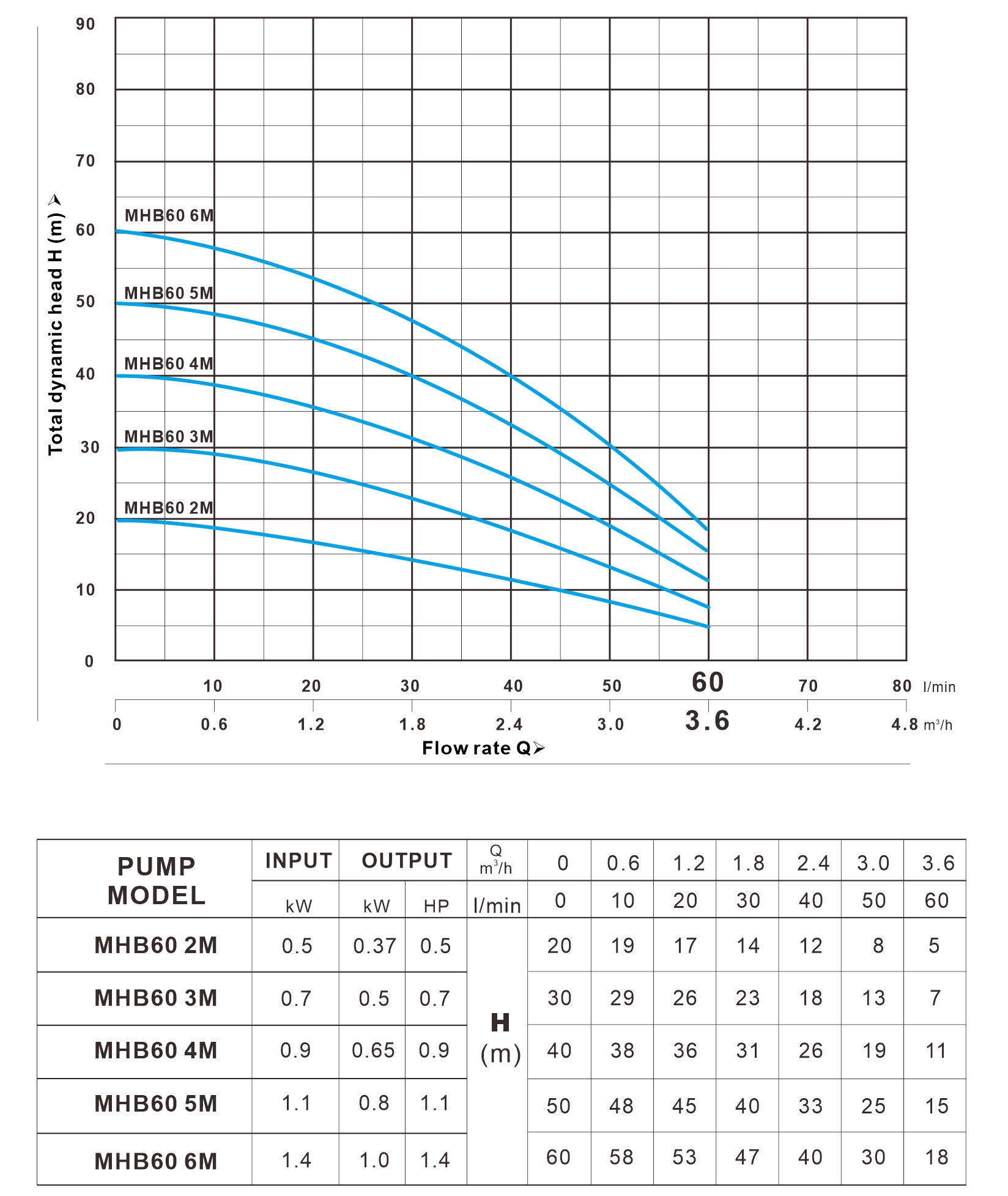

PERFORMANCE CHART AT n= 3400 min-1

MHB 60系列 曲线图 (60Hz)

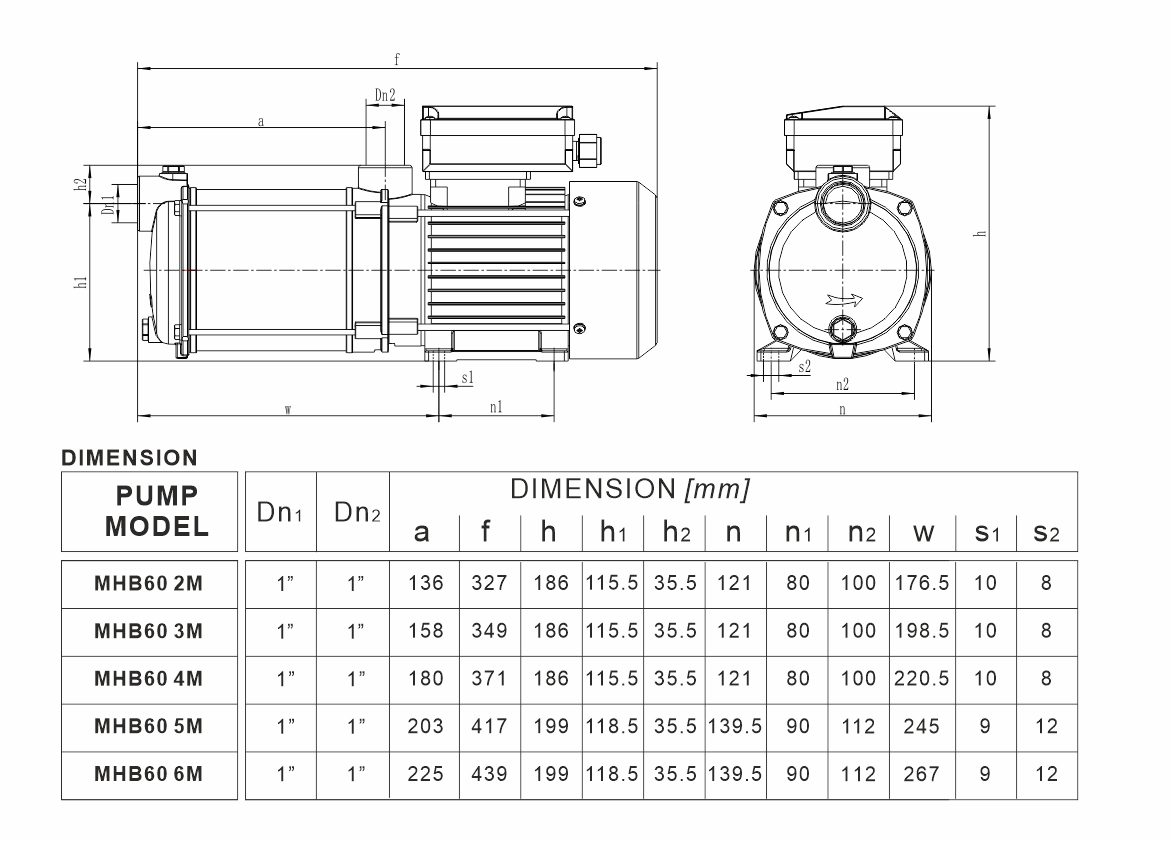

Dimension
