MHF series

Applications

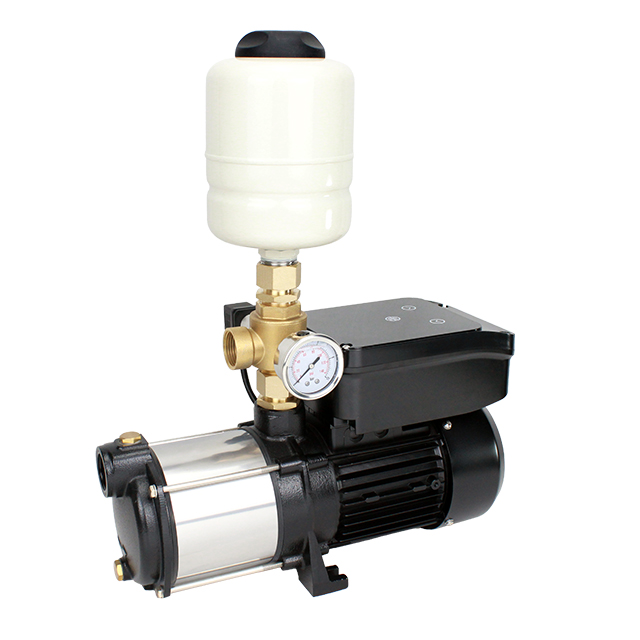

The WENDY MHF is a variable speed booster pump which can be used for domestic, light industry and commercial water supply and pressurization. The integrated variable speed controller enables MHF pump to provide users with constant water.


Features:

 - Constant water pressure
- Low noise
- Easy installation & dismantle
- Adjustable pressure
- User friendly
- Dry run protection
- Overheat protection

Constructions:

- NSK bearing
- Danfoss sensor
- Reliable mechanical seal
Availability:


Model recommendation


MH90 4MF          50 Hz    230V~240V

MH120 4MF        50 Hz    230V~240V

MH145 3MF        50 Hz    230V~240V

MH145 5MF        50 Hz    230V~240V

MH170 3MF        50 Hz    230V~240V

MH170 4MF        50 Hz    230V~240V

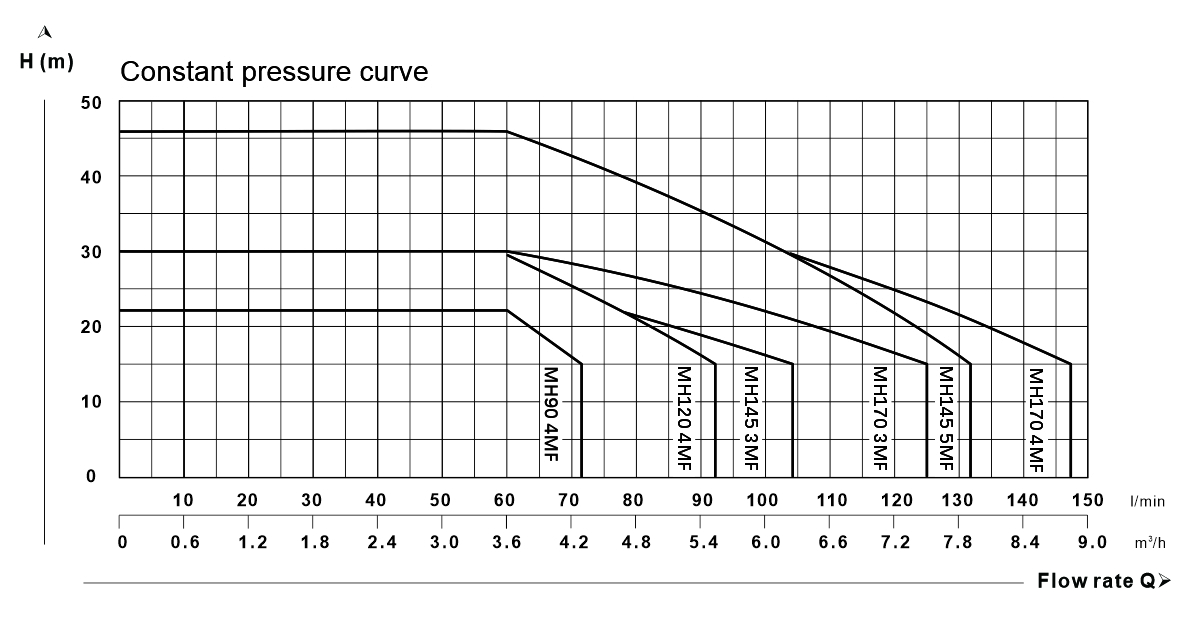

Performance

MHF最佳曲线图

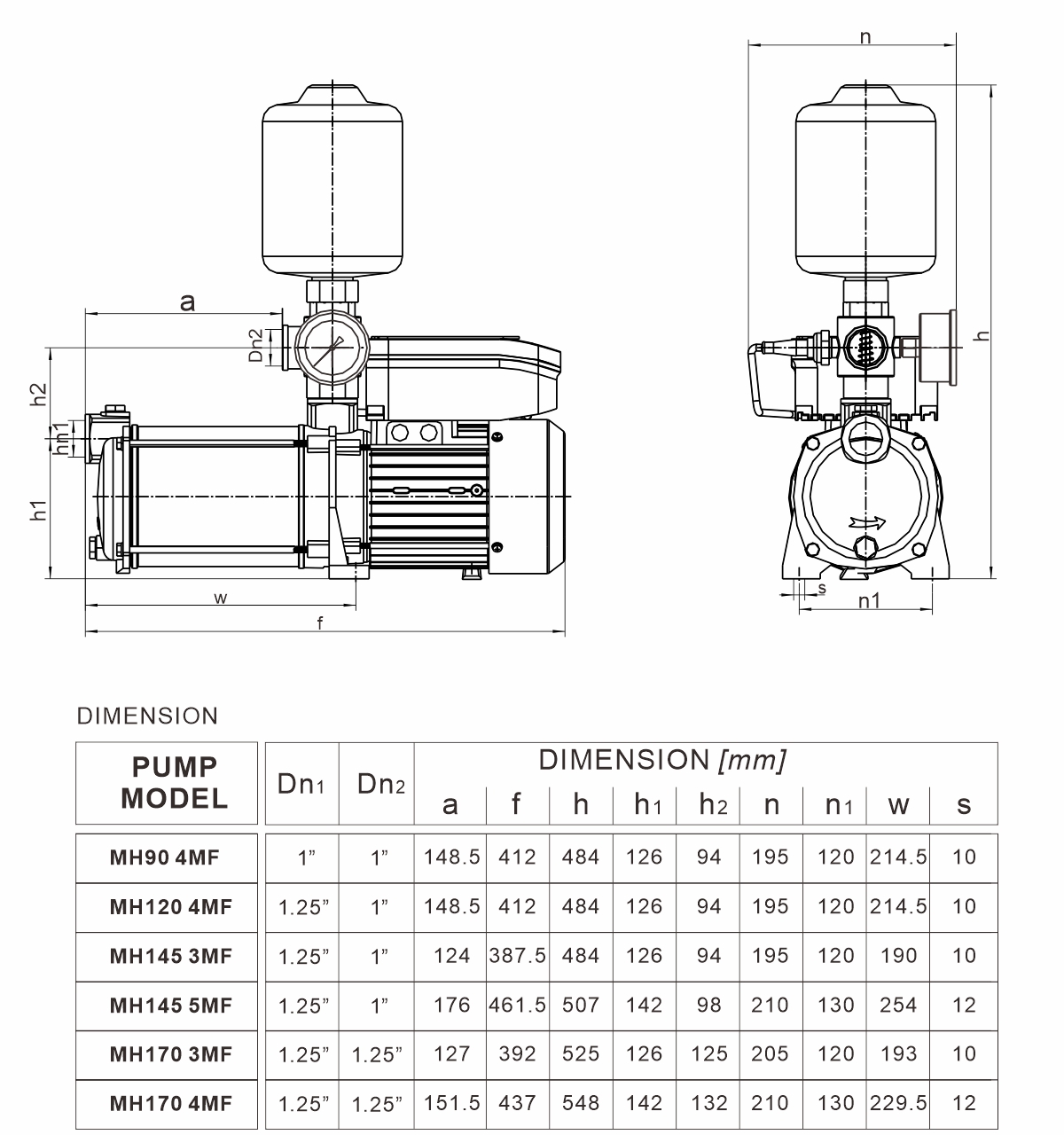

Dimension

MHF安装尺寸图

             * Dimensional details are provided for reference only




Installation

MHF示意图




Control panel


                                        MHF系列面板介绍

                    MHF系列面板介绍1                                       MHF系列面板介绍2                                  MHF系列面板介绍3

                    RUN/STOP                                         UP/+                                        DOWN/-

            (press and hold for 2 seconds)            (increase pressure)                     (decrease pressure)
