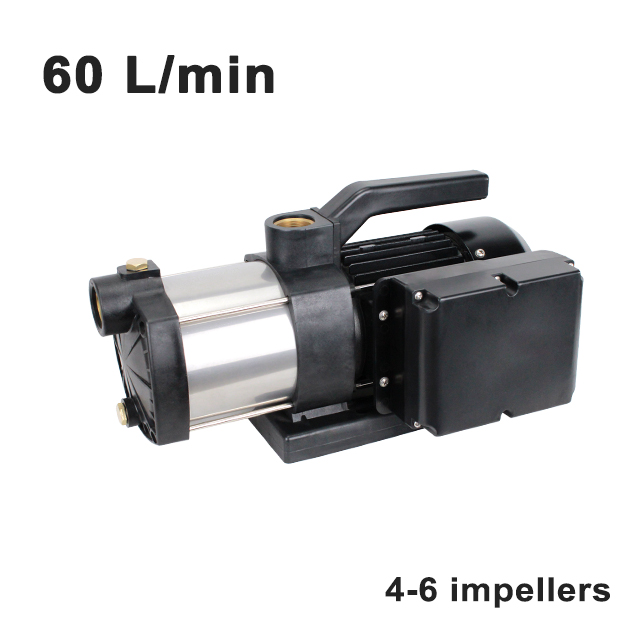

MHP 60 Series

Applications

The WENDY MHP pump is a horizontal multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.

Features

- Sufficient water flow & high lift
- Self-priming 8m
- Low noise
- Low temperature rise motor
- Inbuilt thermal protector (single phase)
- Withstand 24-hour non-stop running
- IPX5

Constructions

- Impeller: AISI304 / Noryl (Sabic PPO)
- Diffuser: Noryl (Sabic PPO)
- Pump Shaft: AISI316
- Pump housing: AISI304
- Suction & discharge mounting: plastic
- Bearing: NSK
- Mechanical seal: Graphite, Silicon carbide, NBR, AISI304
- Terminal box: flame retardant ABS
