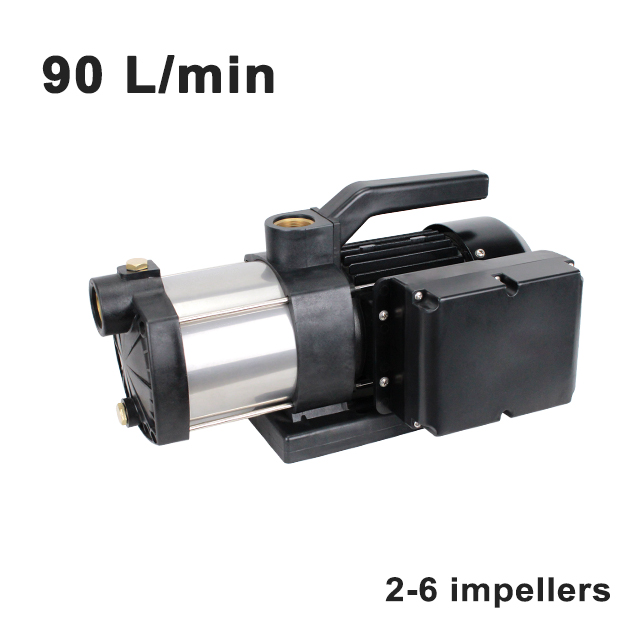

MHP 90 Series

Applications

The WENDY MHP pump is a horizontal multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.

Features

- Sufficient water flow
- 8m Self-priming
- Low noise

Constructions

- NSK bearing
- Reliable mechanical seal
- 316 stainless steel motor shaft
- Plastic suction and discharge mounting
- Diffuser Sabic PPO
- Impeller Sabic PPO and Stainless steel for optional
- Low temperature rise motor
- IP55 protection for motor
- Flame retardant terminal box
- Inbuilt thermal protector (single phase)
Availability:

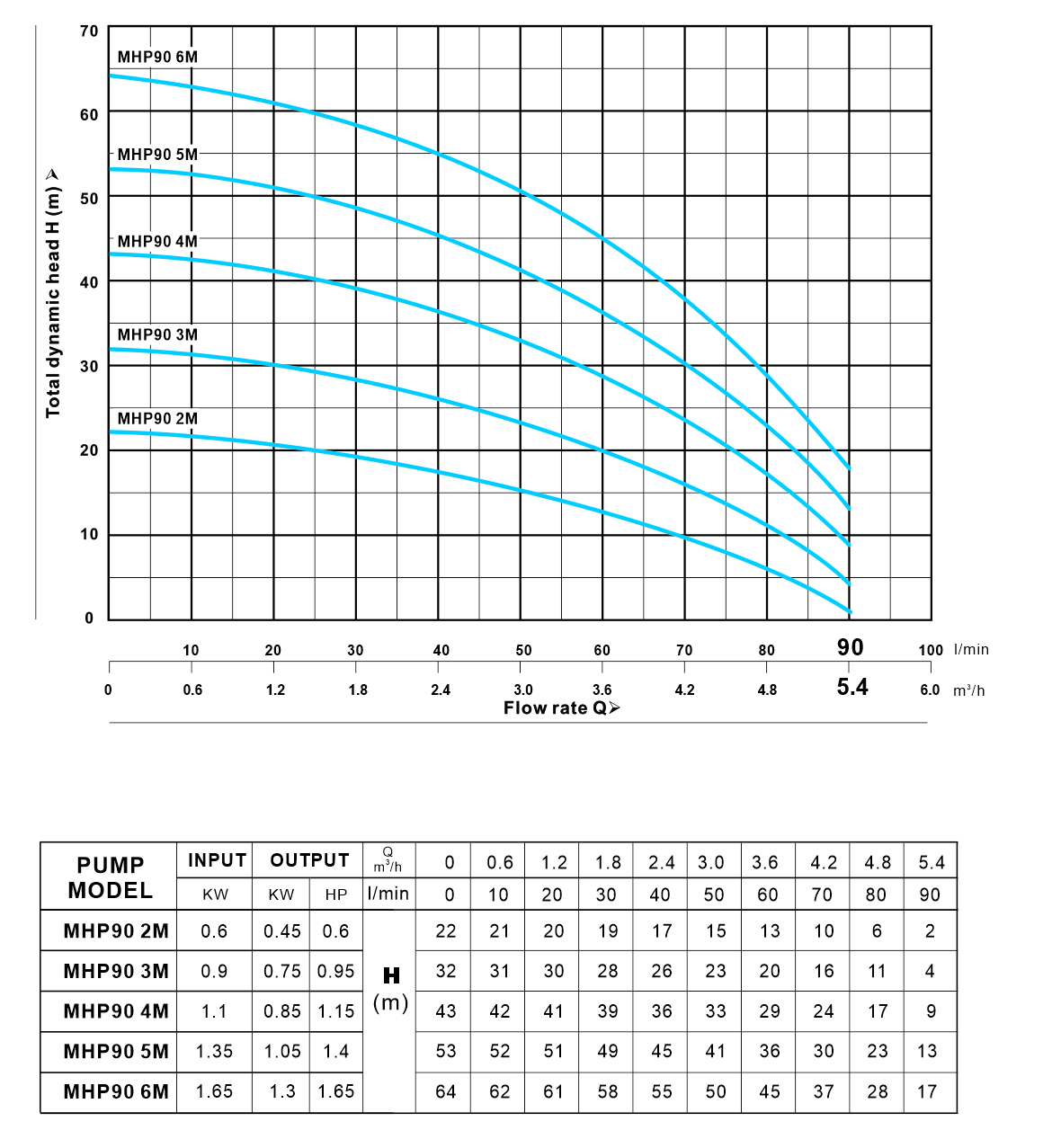

PERFORMANCE CHART AT n= 2850 min-1

MHP 90 系列(50Hz)

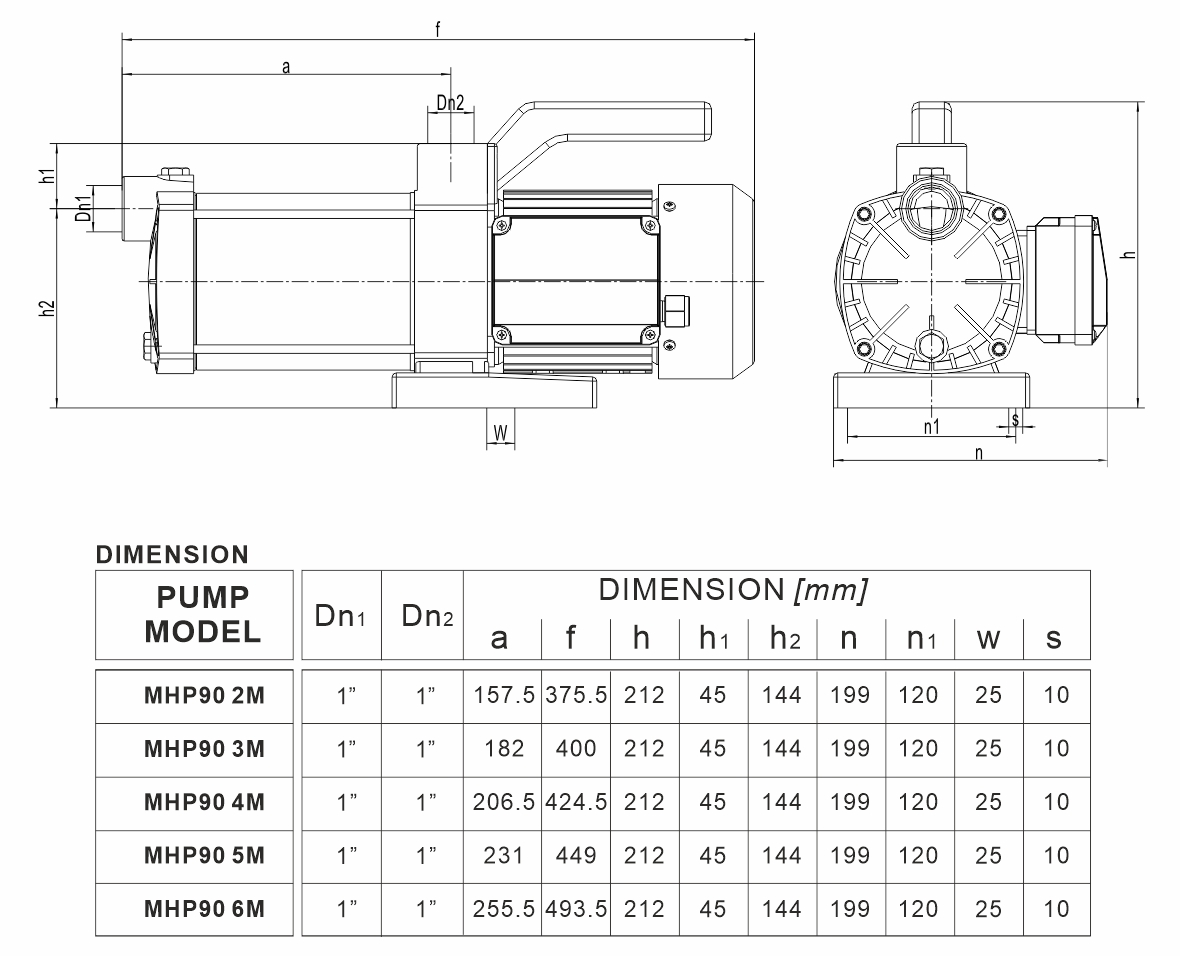

Dimension

LH90 3MF 曲线图(50Hz)外形尺寸图

     * Dimensional details are provided for reference only
