MHSF series

Applications

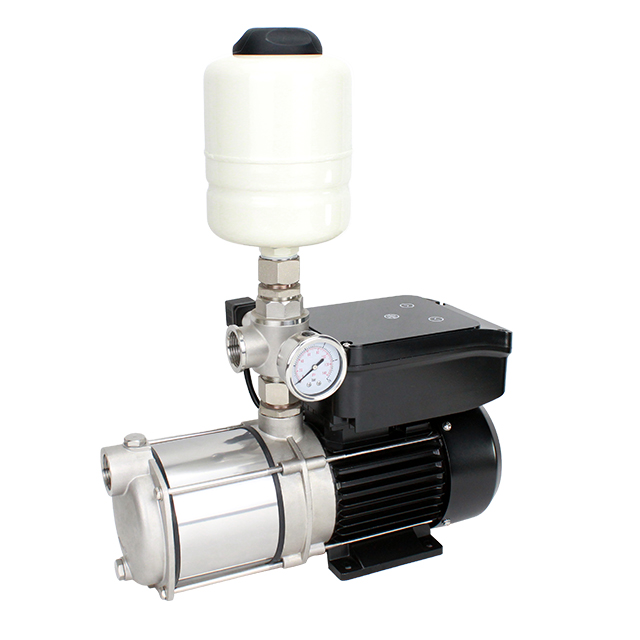

The WENDY MHSF is a variable speed booster pump which can be used for domestic, light industry and commercial water supply and pressurization. The integrated variable speed controller enables MHSF pump to provide users with constant water.


Features：
- Constant water pressure
- Low noise
- Easy installation & dismantle
- Adjustable pressure
- User friendly
- Dry run protection
- Overheat protection
- Can be use for direct drinking water

Constructions:
- NSK bearing
- Danfoss sensor
- 304 stainless steel
- Reliable mechanical seal
Availability:
Inquire Add to Basket

sharethis sharing button


Model recommendation


MHS90 4MF          50 Hz    230V~240V

MHS120 4MF        50 Hz    230V~240V

MHS145 3MF        50 Hz    230V~240V

MHS145 5MF        50 Hz    230V~240V

MHS170 3MF        50 Hz    230V~240V

MHS170 4MF        50 Hz    230V~240V




Performance

MHSF最佳曲线图




Dimension

MHSF安装尺寸图

             * Dimensional details are provided for reference only

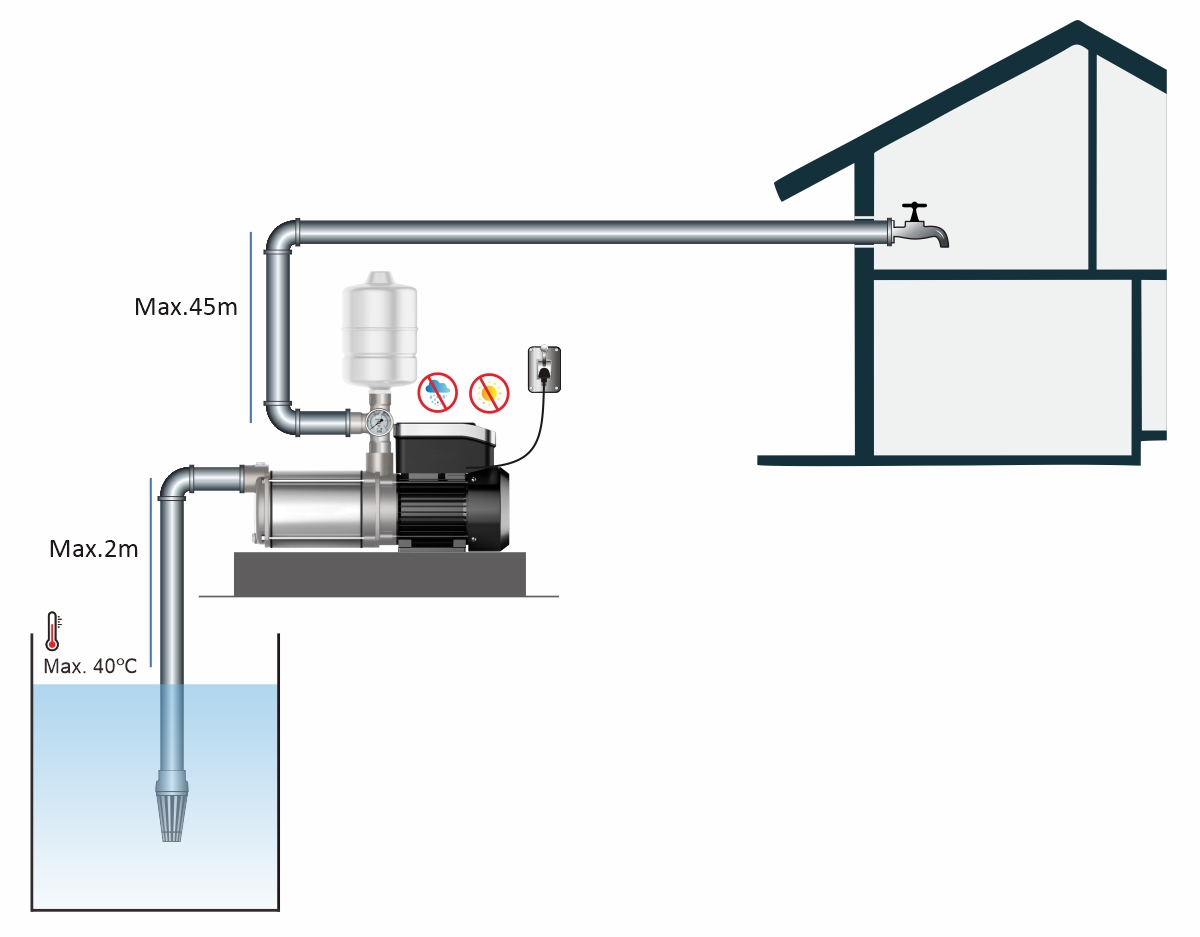

Installation

MHSF示意图




Control panel


                                        MHF系列面板介绍

                    MHF系列面板介绍1                                       MHF系列面板介绍2                                  MHF系列面板介绍3

                    RUN/STOP                                         UP/+                                        DOWN/-

            (press and hold for 2 seconds)            (increase pressure)                     (decrease pressure)
