MVL 90 Series

Applications

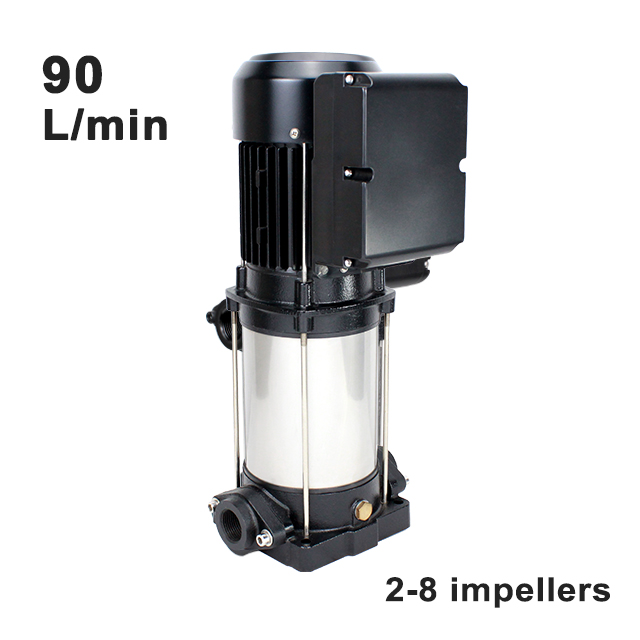

The WENDY MVL pump is a vertical multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.



Features

- Sufficient water flow
- Low noise

Constructions

- NSK bearing
- Reliable mechanical seal
- 316 stainless steel motor shaft
- Diffuser Sabic PPO
- Impeller Sabic PPO and Stainless steel for optional
- Low temperature rise motor
- IP55 protection for motor
- Flame retardant terminal box
- Inbuilt thermal protector (single phase)
Availability:

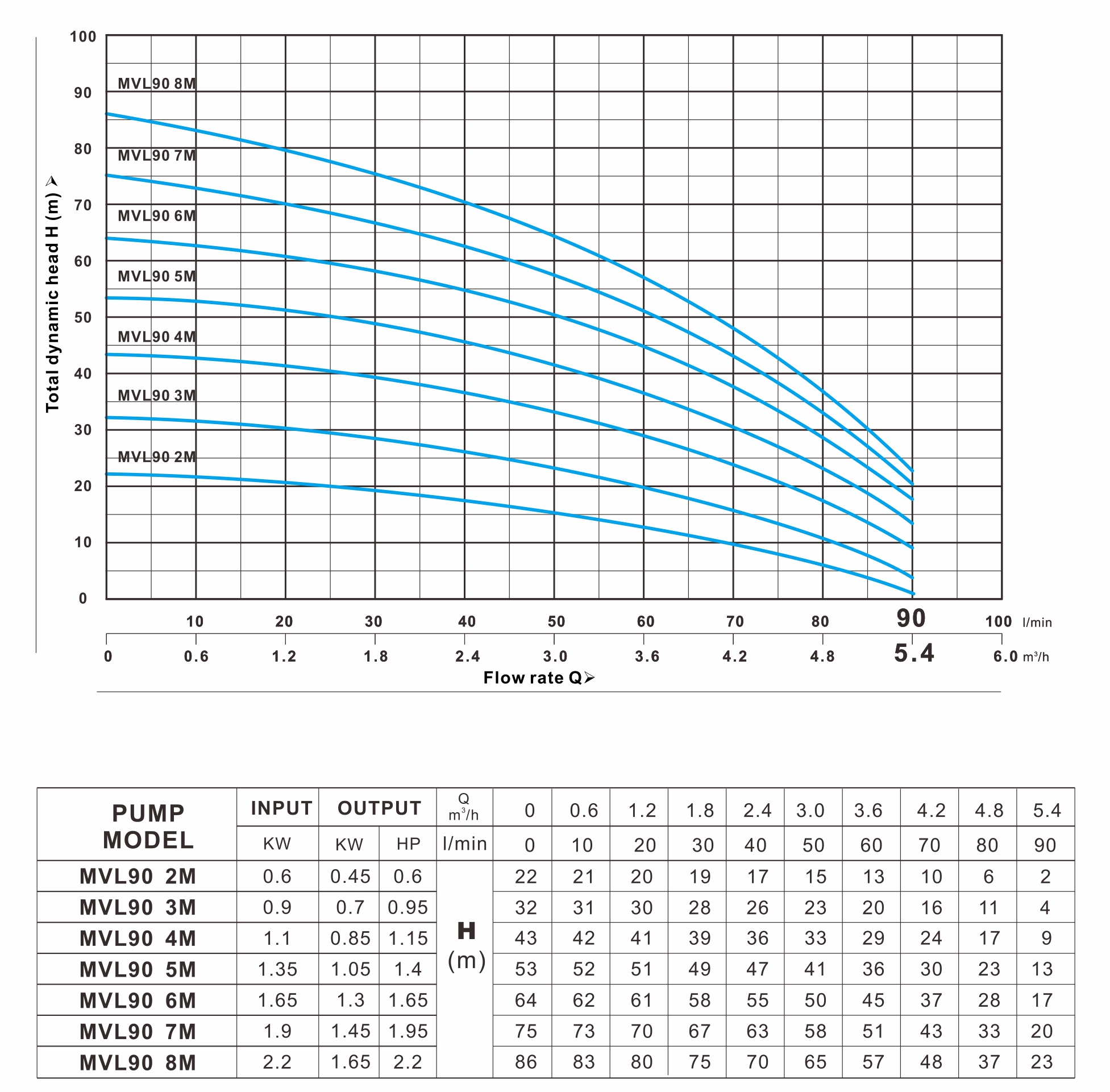

PERFORMANCE CHART AT n= 2850 min-1

MVL 90系列 曲线图(50Hz)

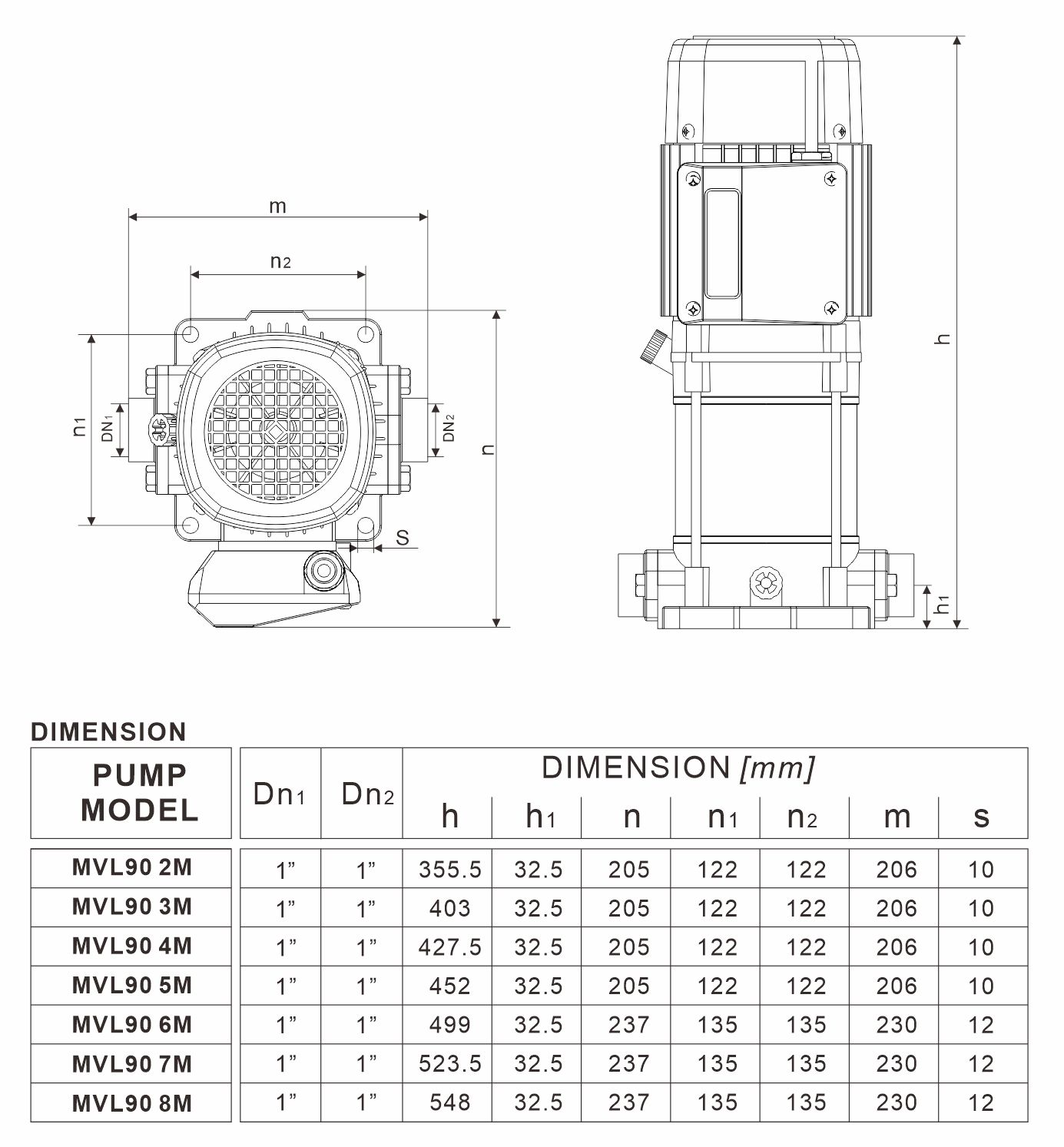

Dimension

MVL90 安装尺寸图

     * Dimensional details are provided for reference only

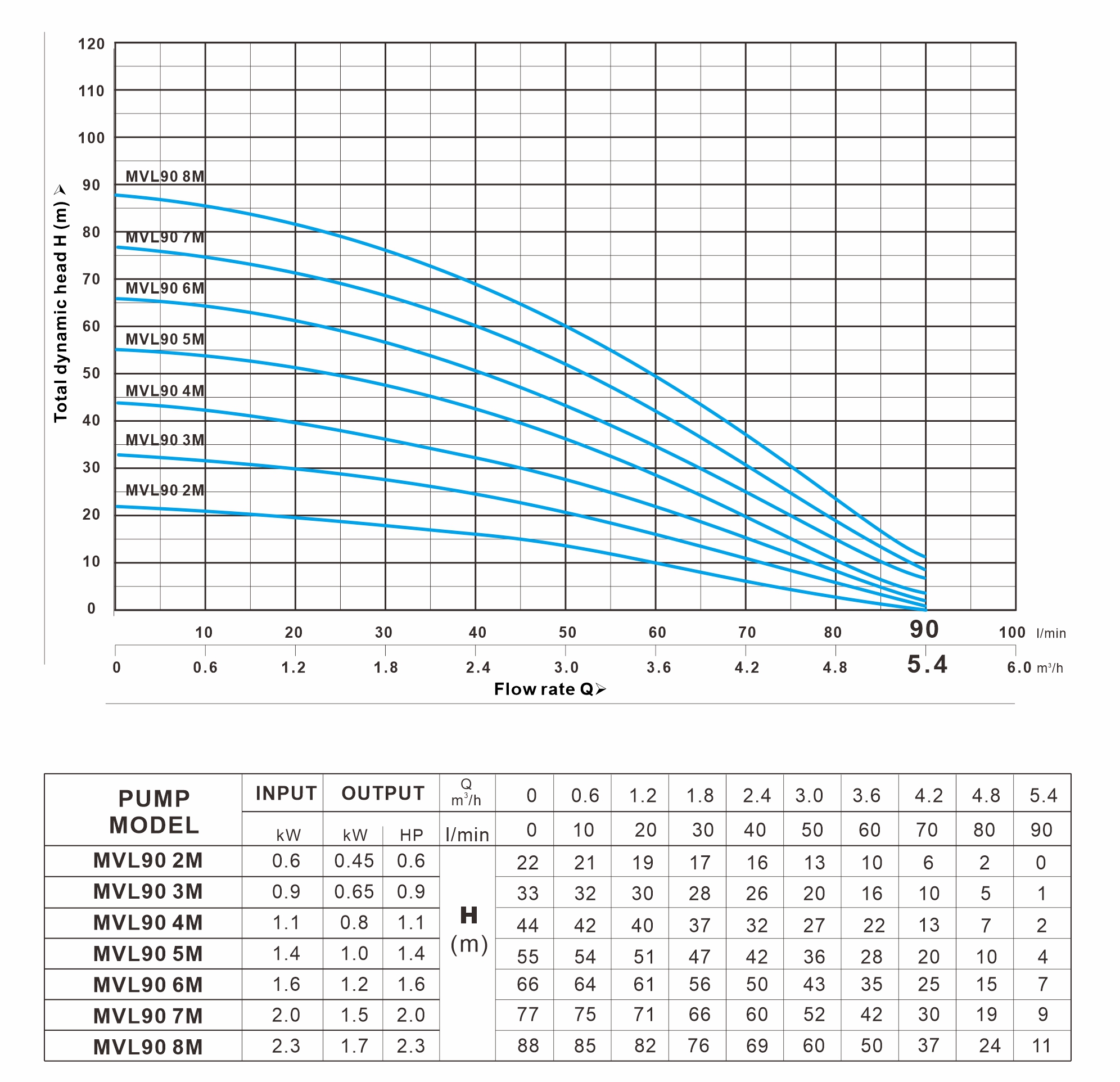

PERFORMANCE CHART AT n= 3400 min-1

MVL 90系列 曲线图(60Hz)

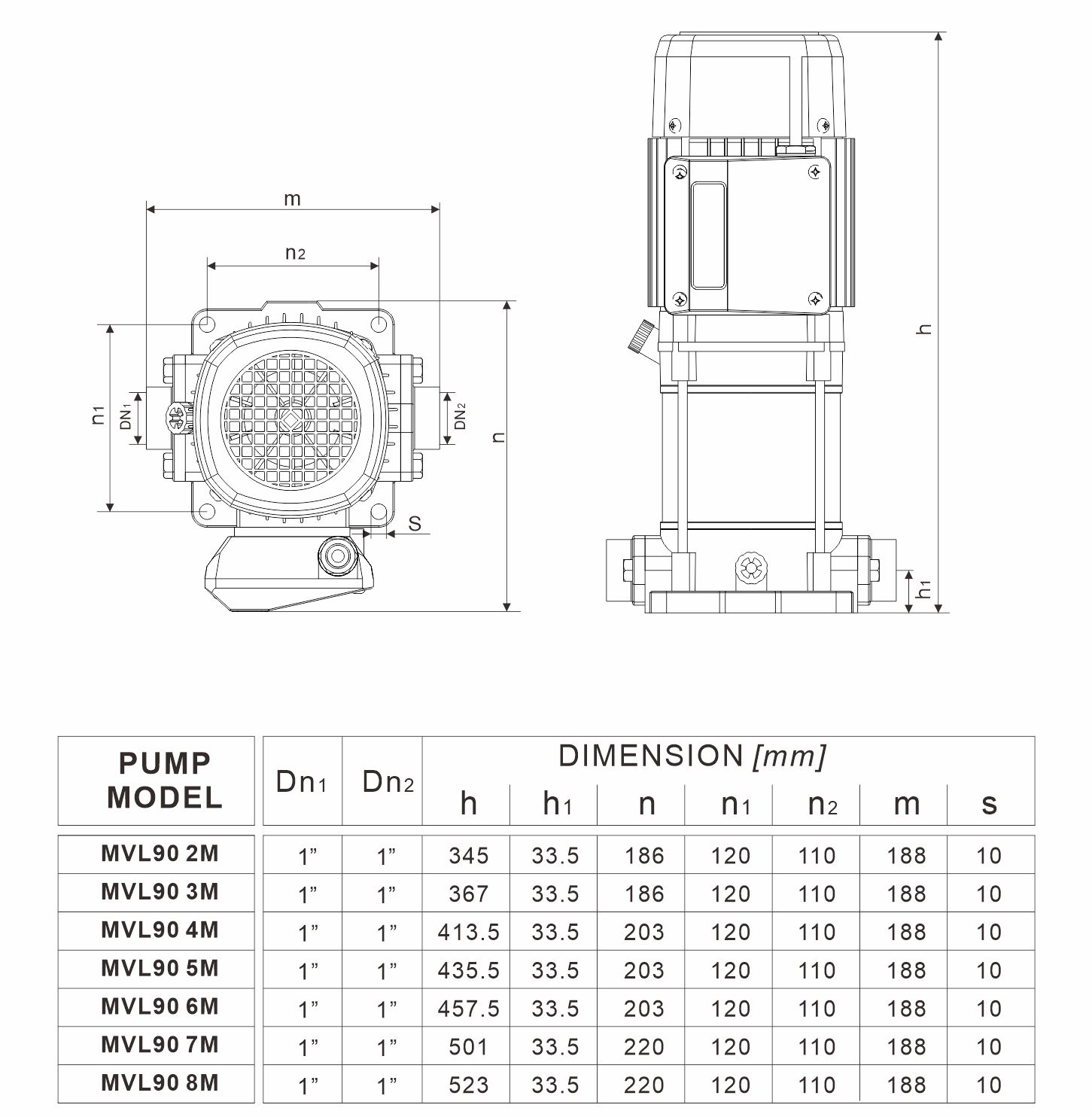

Dimension

MVL 90系列 安装尺寸图(60Hz)

     * Dimensional details are provided for reference only
