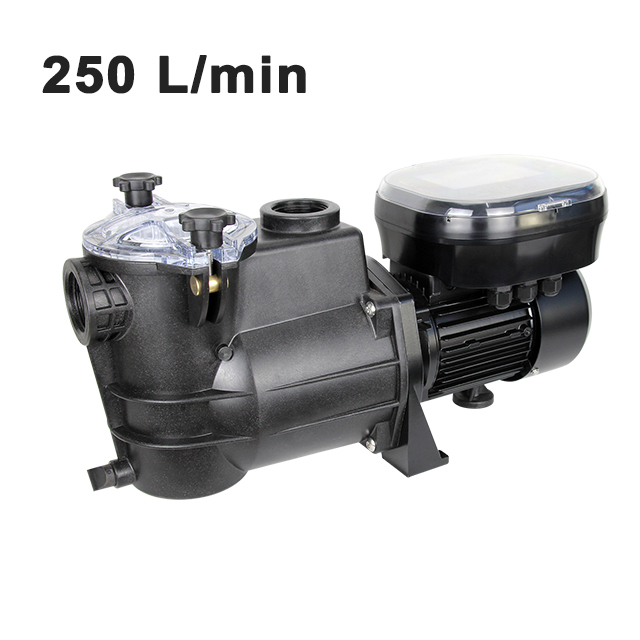

P6-SPO-55

Applications

Circulating filtered water for domestic swimming pool.
Suitable for both in-ground and above ground swimming pools.
With 4 speeds and a permanent magnet motor.

Features

- Self-priming up to 4m
- LCD screen & Easy to use
- 4 speeds: 1150/1700/2100/2850 rpm
- Speed customization for different time
- periods, enabling automatic operation
- at preset speeds as scheduled.
- High efficiency motor IE5
- Low noise
- Tmax: 40°C

Constructions

- Impeller: Noryl (Sabic PPO)
- Diffuser: Noryl (Sabic PPO)
- Pump housing: PP
- Bearings: NSK
- Mechanical seal: Graphite, ceramic, NBR, AISI304
Availability:
sharethis sharing button

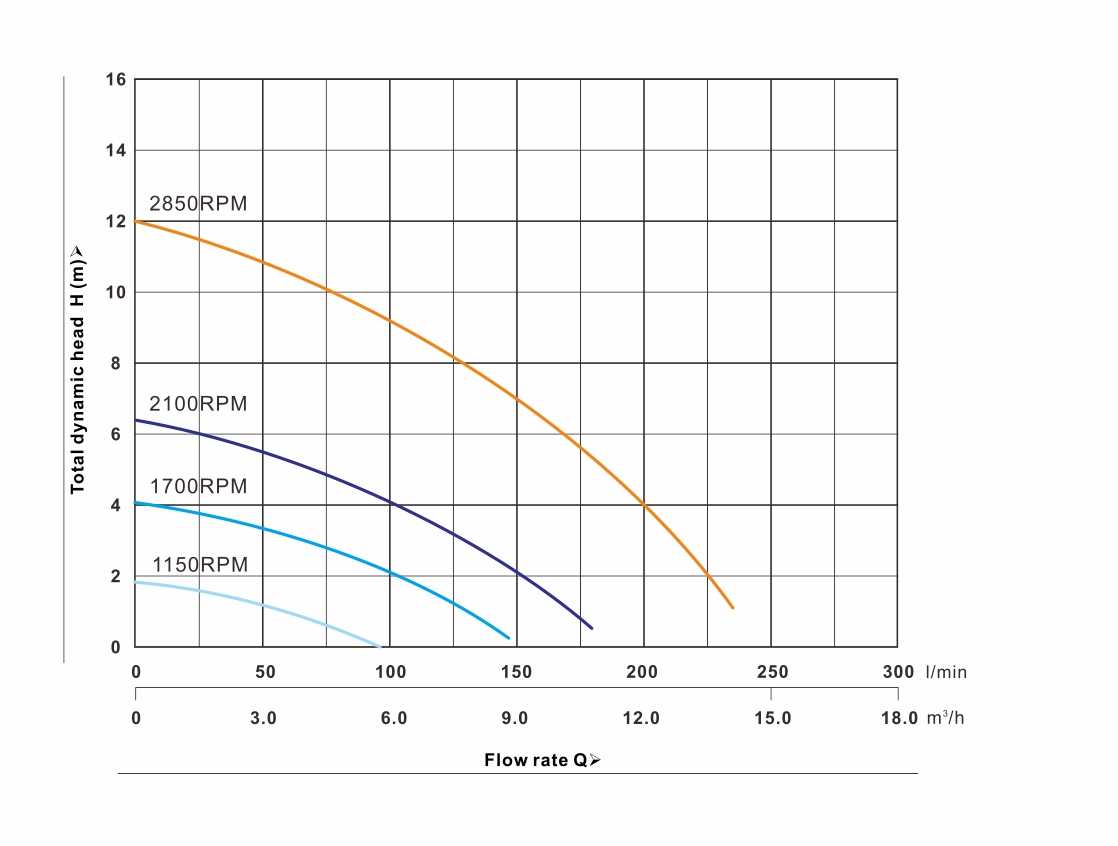

PERFORMANCE CHART AT n= 2850 min-1

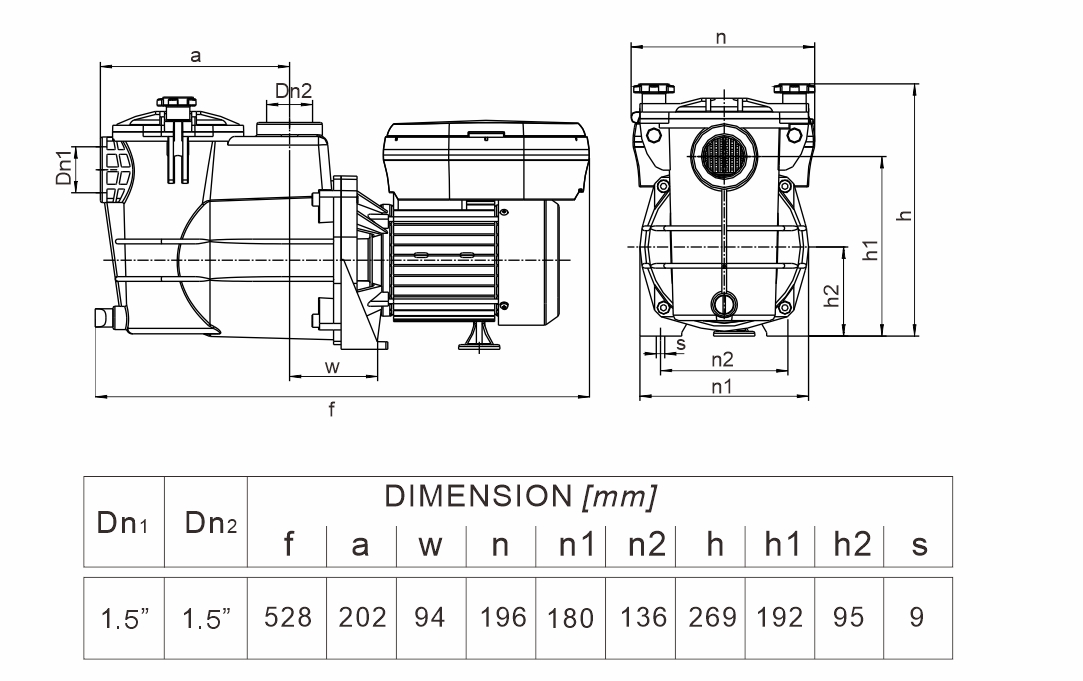

Dimension

  * Dimensional details are provided for reference only
