SPO 55

Applications

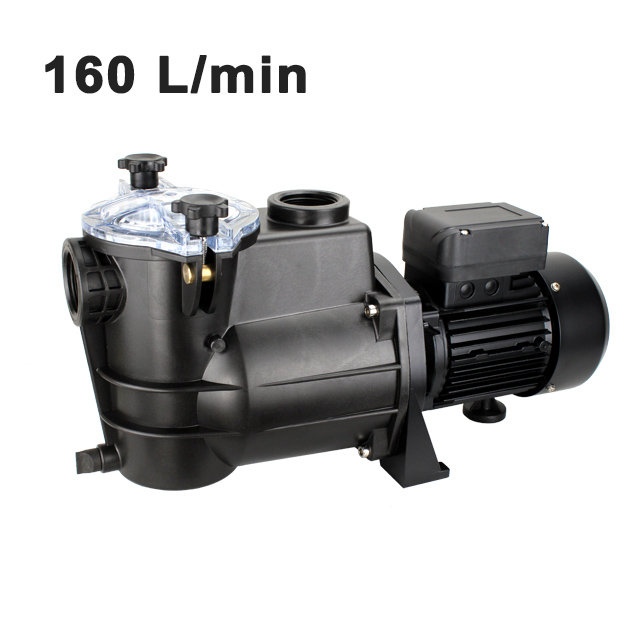

The WENDY SPO pump is a swimming pool pump, designed for small and medium size residential pools.

Features

- Self-priming up to 4m
- Low noise
- Available high efficiency:
  Single phase motor class IE2
  Three phase motor class IE3

Constructions

- NSK bearing
- Reliable mechanical seal
- 416 stainless steel motor shaft
- Pump housing PPG30
- Diffuser Sabic PPO
- Impeller Sabic PPO
- Low temperature rise motor
- IP55 protection for motor
- Flame retardant terminal box
- Inbuilt thermal protector (single phase)
Availability:
sharethis sharing button

PERFORMANCE CHART AT n= 2850 min-1

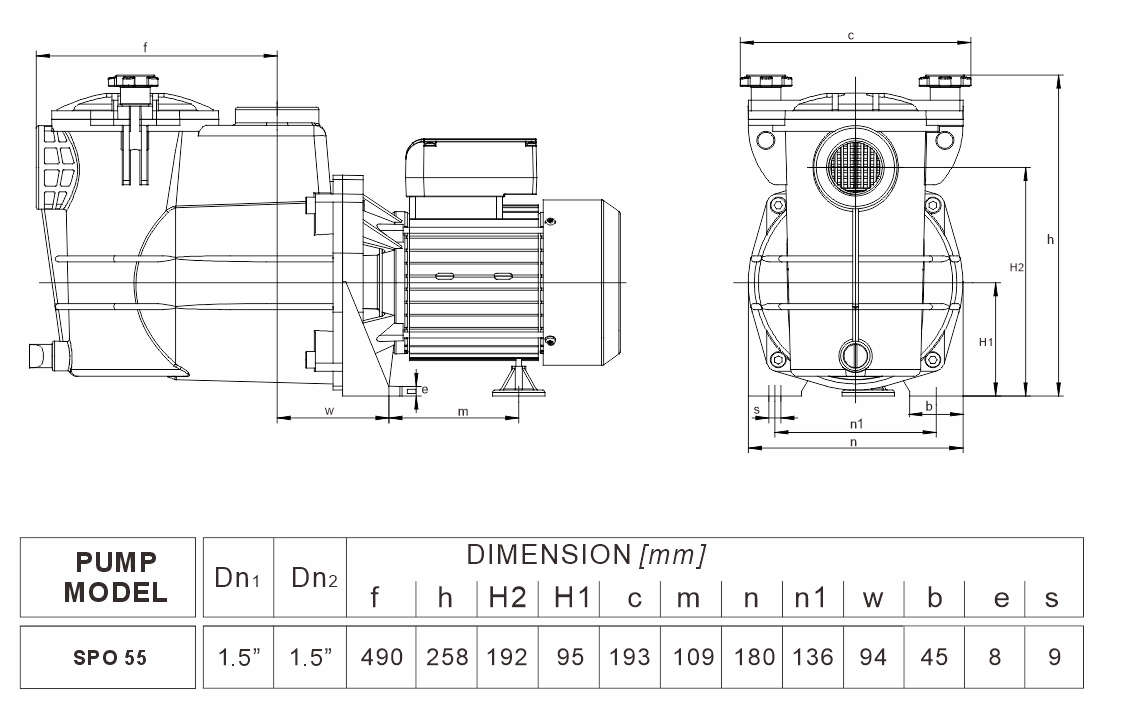

Dimension

  * Dimensional details are provided for reference only
