MHS 170 Series

Applications

The WENDY MHS pump is a horizontal multistage pump which can be used for domestic, light industry and commercial water supply and pressurization.

Features

  - High lift
  - Sufficient water flow
  - 8m Self-priming
  - Low noise
  - Available high efficiency:
    Single phase motor class IE2
    Three phase motor class IE3

Constructions

  - NSK bearing
  - Reliable mechanical seal
  - 316 stainless steel motor shaft
  - AISA304 suction & discharge mounting
  - Diffuser Sabic PPO
  - Impeller Stainless steel
  - Low temperature rise motor
  - IP55 protection for motor
  - Flame retardant terminal box
  - Inbuilt thermal protector (single phase)
Availability:
sharethis sharing button

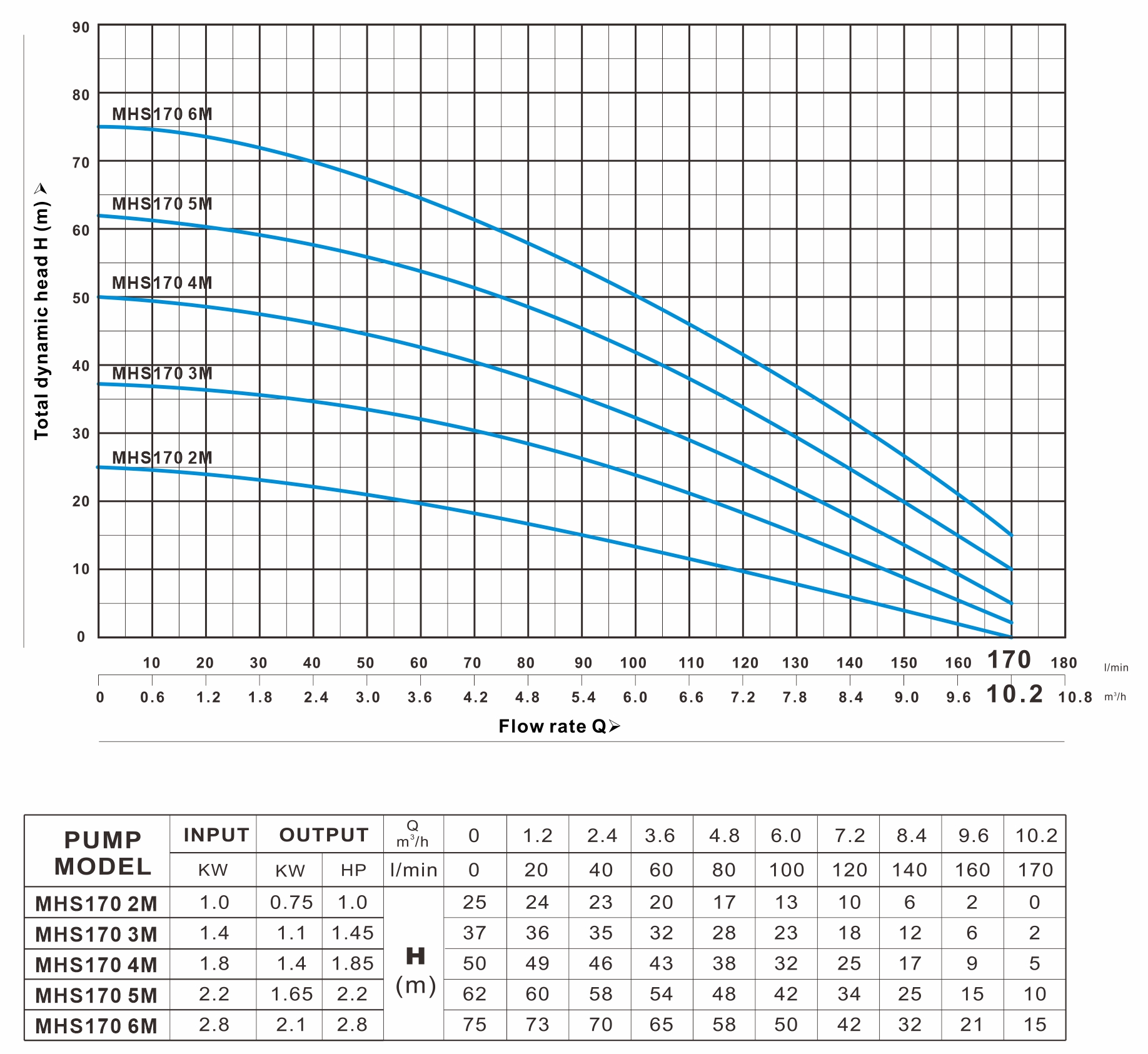

PERFORMANCE CHART AT n= 2850 min-1

MHS 170系列 曲线图(50Hz)

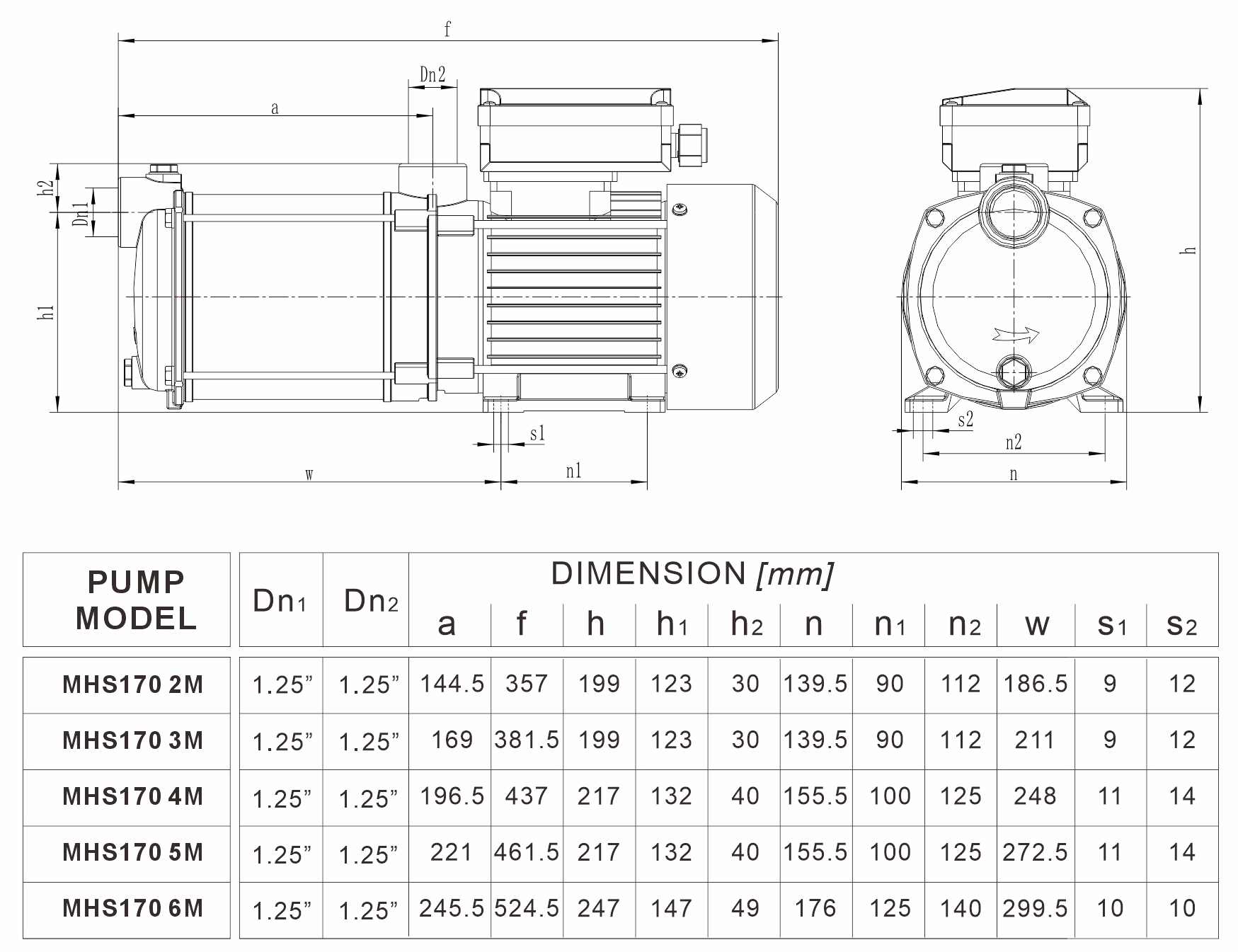

Dimension

MHS 170系列 安装尺寸图(50Hz)

     * Dimensional details are provided for reference only

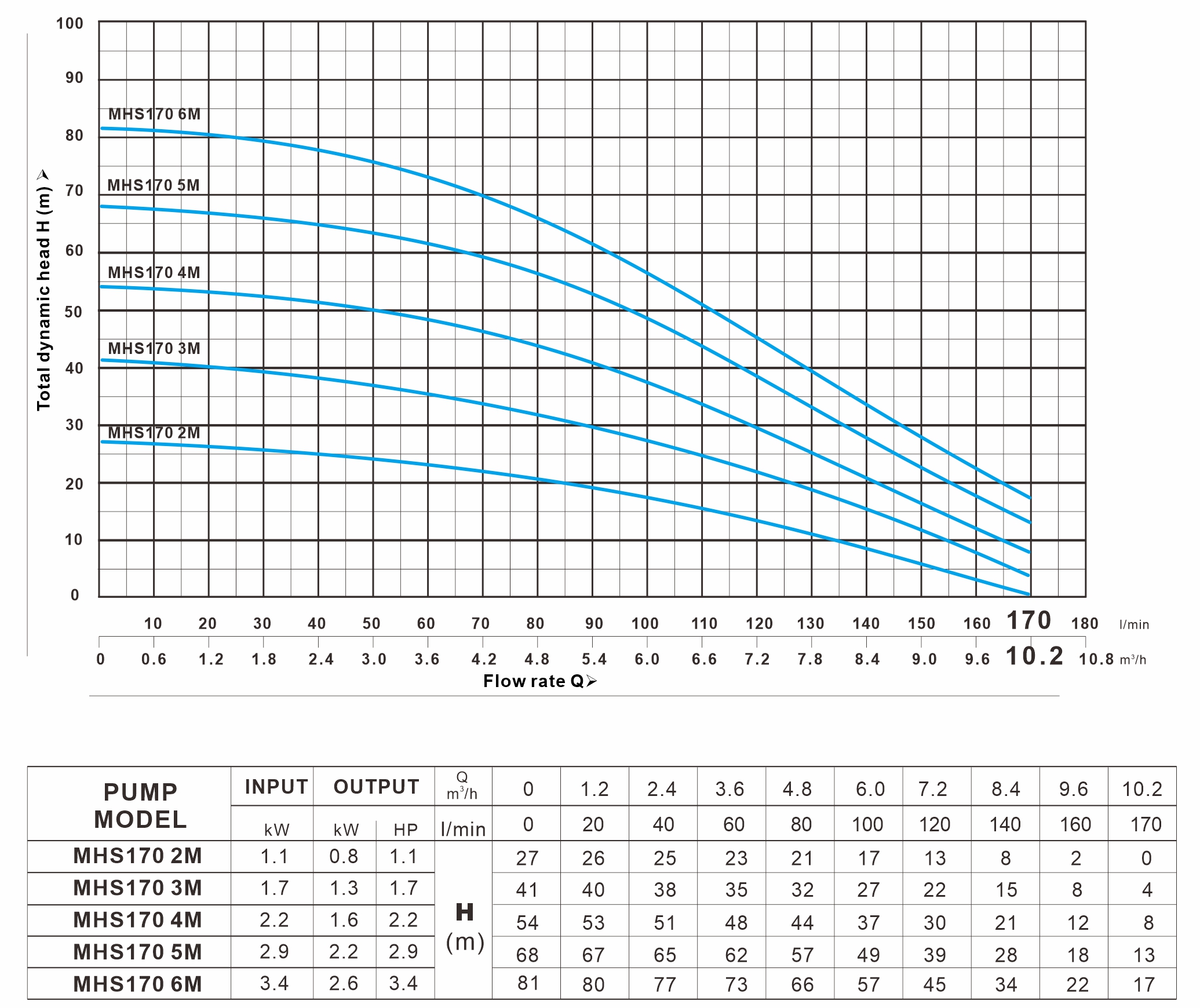

PERFORMANCE CHART AT n= 3400 min-1

MHS 170系列 曲线图(60Hz)

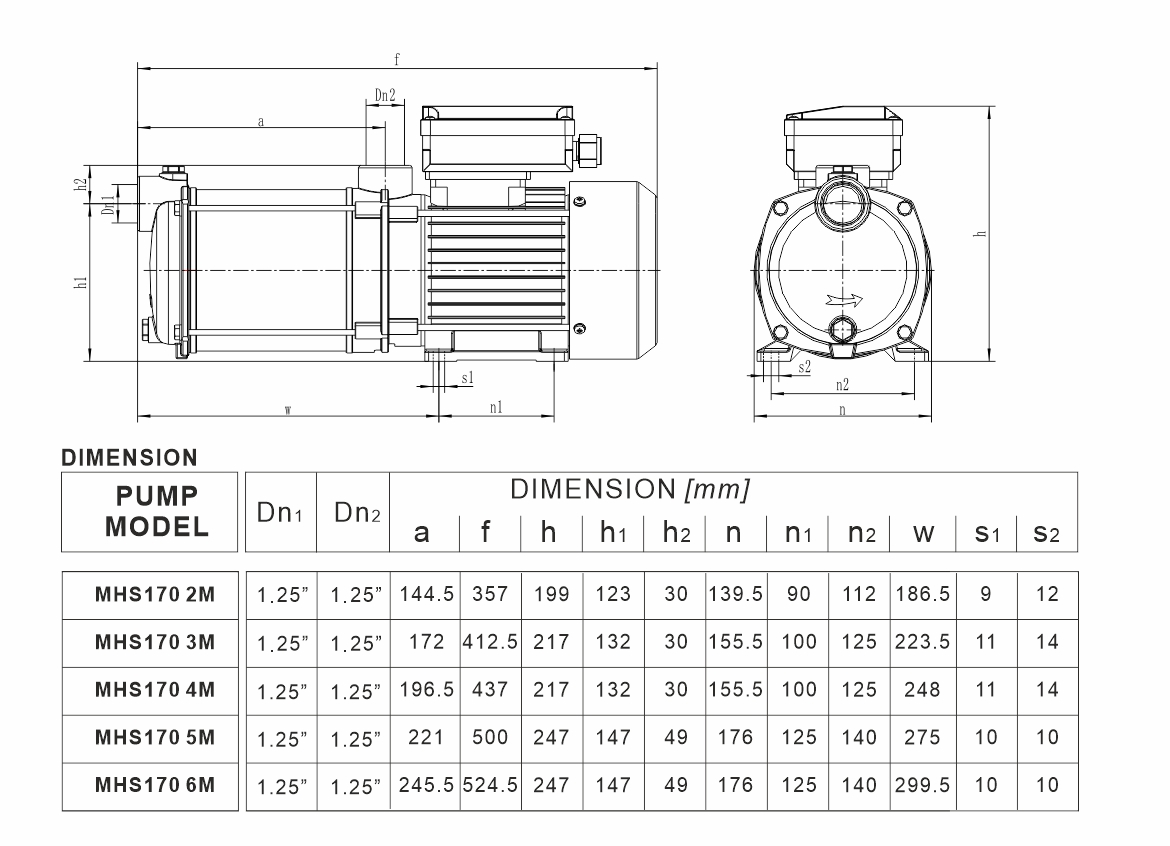

Dimension



    * Dimensional details are provided for reference only
